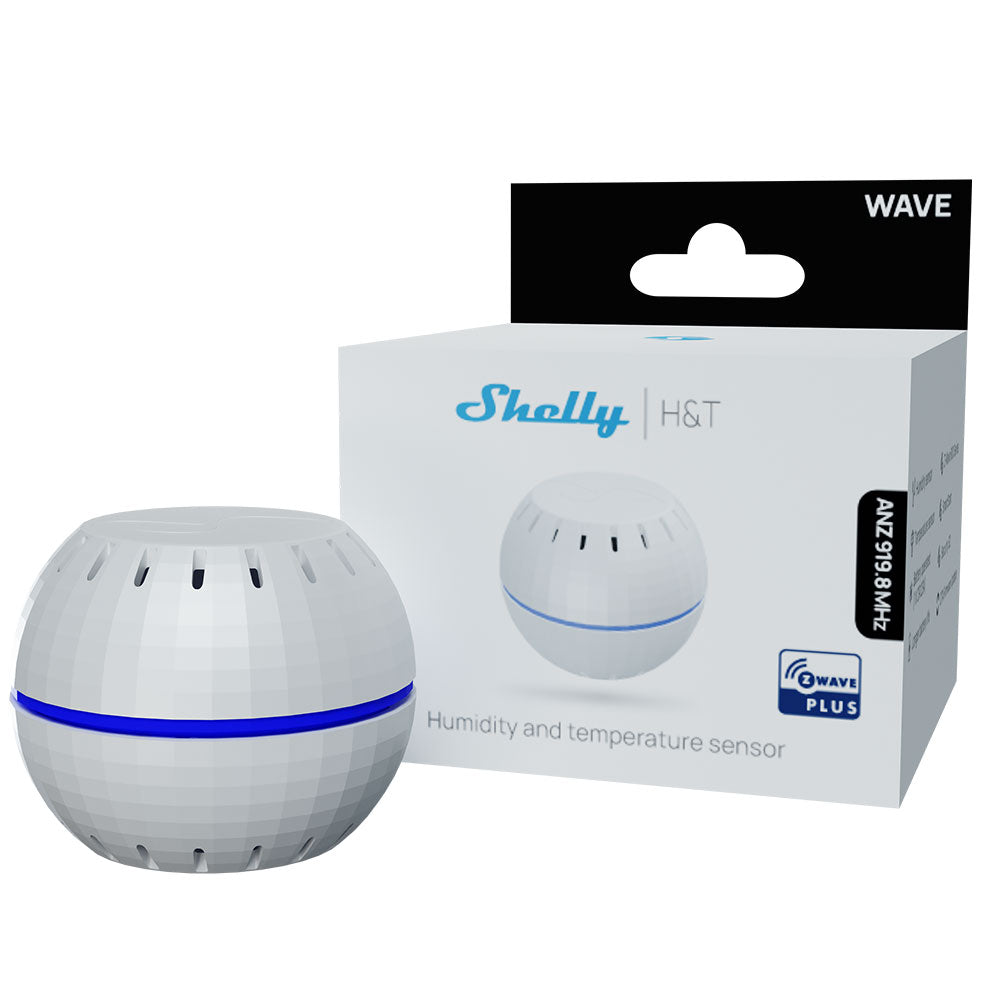

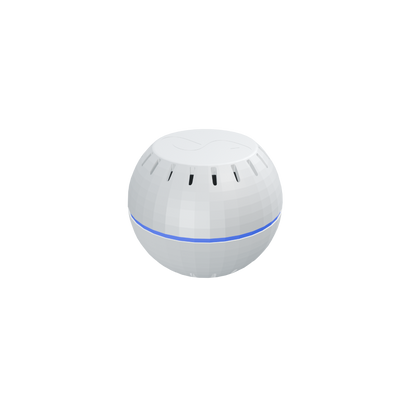

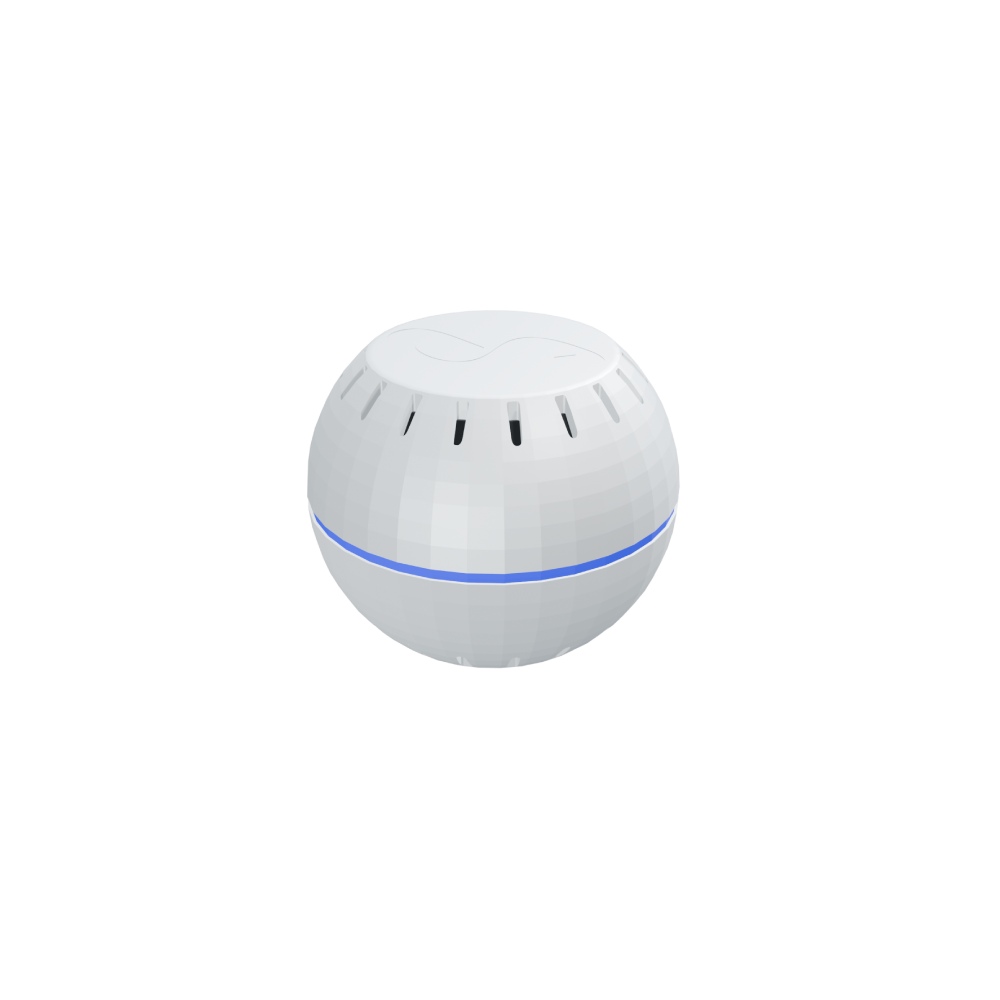

Shelly Wave H&T ANZ
Device identification
Device: Shelly Wave H&T (AU)
EU Part number/Ordering Code: QNHT-0U2ZAU
Z-Wave Product type ID: 0x0100
Z-Wave Product ID: 0x0083
Z-Wave Manufacturer: Shelly Europe
Z-Wave Manufacturer ID: 0x0460
Terminology
Short description
The Device is a smart Z-Wave® humidity and temperature sensor featuring long battery life.
Use cases
Basic Functions
SmartStart
Assocciations
Air temperature and humidity reporting
OTA - Over-The-Air firmware update
Operational Instructions
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University college
Integrations
Shelly Wave devices are developed on the world's leading technology for smart homes – Z-Wave.
This means Shelly Wave works with all certified gateways supporting Z-Wave communication protocol.
To make sure the functions of Shelly Wave products are supported on your gateway, we are regularly executing compatibility tests of our devices with different Z-Wave gateways.
Connectivity
Z-Wave - Unsecure, S0 Security, S2 Unauthenticated Security, S2 Authenticated Security
User interface
S button and operating modes
Single press (<0,5s):
Device wake up
Device not included, Blue led blink once
Device included, Green led blink once if GW respond with "Wake Up No More Information"
Device included, Green led blinks for 10s if GW doesn’t respond with "Wake Up No More Information"
Settings mode:
Is required to start the desired procedure, for example: adding (inclusion (*not available for Long Range)), removing (exclusion), factory reset, etc. It has a limited operating time. After completing the procedure in Setting mode, the Device automatically switches to Normal mode.
Entering Setting mode:
Press the S button (>0,5s)
Device NOT included: LED is solid blue.
Device included: LED is solid green for 0,5s then blue
An additional quick press on the S button changes the menu in an infinite loop.
The Settings mode has a timeout of 10s before entering again into Normal mode.
S button’s functions
Manually adding the Device to a Z-Wave network (*not available for Long Range inclusion)
Manually removing the Device from a Z-Wave network
Factory Reset the Device
Wake-up
LED Signalisation
General rules
Switching between Normal and Settings mode is done by press and hold the S button.
Solid LED means that you are in the Settings mode. Once in settings mode, switch to normal mode goes automatically after 10s.
Press on the S button wake up LED for 1s, and device power cycle wakes up LED for 10s.
During module boot up LED will blink in mode 5 (0,2s On blue/0,2s On red) for 4-5 s.
Normal mode LED status: Normal mode is defined by stable device function that can remain for an infinite time.
LED type: RGB dimmable
Normal mode
Removed/Excluded
The LED will be blinking blue in Mode 1 for 30s after every power cycle and 30s after S button pressed.
Added/Included
The LED will be blinking green in Mode 1 for 10sec after every power cycle and 1sec after S button pressed.
Settings in progress
Factory reset and reboot
During factory reset, the LED will turn solid green for approx. 500ms, then the blue LED will be blinking in Mode 1.
Adding / Removing
During adding or removing, the LED will be blinking blue in Mode 2.
OTA firmware updating
During the OTA update, the LED will be blinking blue and red in Mode 2.
Settings mode with S button
Adding / Removing menu selected (*adding not available for Long Range inclusion)
When the menu is selected the LED will be on blue, for maximum of 10 seconds.
Adding / Removing menu - while pressing S- button - Add/Remove process selected (*adding not available for Long Range inclusion)
When the menu is executing the LED will be blinking blue in Mode 3.
Factory reset menu selected
When the menu is selected the LED will be on red, for maximum of 10 seconds.
Factory reset - while pressing S - button - Factory reset process selected
When the menu is executing the LED will be blinking red in Mode 3.
Alarm Mode
NA
LED blinking modes
Technical Specifications
Power supply |
1x 3 V CR123A battery |
Battery life |
Up to 2 years |
Humidity sensor |
Yes |
Temperature sensor |
Yes |
Distance |
Up to 40 m indoors (131ft.) (depends on local condition) |
Z-Wave® repeater |
No |
CPU |
Z-Wave® S800 |
Z-Wave® frequency bands |
919.8 MHz |
Maximum radio frequency power transmitted in frequency band(s) |
< 25 mW |
Size (H x W x D) |
35x46 mm / 1.38x1.81 in |
Weight |
16 g without battery |
Shell material |
Plastic |
Color |
Black or White |
Ambient temperature |
-20°C to 40°C / -5°F to 105°F |
Humidity |
30% to 70% RH |
Max. altitude |
N/A |
Motion description
Legend
A: Bottom shell
B: S button
C: LED indication
Fig.1
Fig.2
Fig.3
Inserting/Replacing the battery
Remove the Device bottom shell by turning it counterclockwise as shown on Fig. 1.
Insert the battery as shown on Fig. 2.
The LED indication should start flashing slowly, indicating the Device is awake. Attach the bottom shell to Device by turning it clockwise as shown on Fig. 3.
Device can be also power supplied through a USB power adapter. Device USB adapter is available for purchase separately at:https://shelly.link/HT-adapter
About Z-Wave®
The Z-Wave® protocol is an interoperable, wireless, RF-based communications technology designed specifically for control, monitoring, and status reading applications in residential and light commercial environments. Mature, proven, and broadly deployed, Z-Wave® is by far the world market leader in wireless control, bringing affordable, reliable, and easy-to-use 'smart' products to millions of people in every aspect of daily life.
Interoperability has always been at the core of the Z-Wave® protocol, alongside the features like backward compatibility, security, and reliability. All Z-Wave® devices can be operated in any Z-Wave® network with other Z-Wave® certified devices, regardless of brand or manufacturer. All mains operated nodes within the network will act as repeaters regardless of vendor to increase the reliability of the network. There are 4000+ Z-Wave® certified products that are backwards- and forwards-compatible in the Z-Wave® ecosystem and well over 100 million devices currently in the market.
With over 20 years in the marketplace, Z-Wave® technology has best-in-class security measures to keep your home network smarter and safer.
Adding and removing the Device to a Z-Wave® network
Adding the Device to a Z-Wave® network (inclusion)
Note! In case of Security 2 (S2) adding (inclusion), a dialog will appear asking you to enter the corresponding PIN Code (5 underlined digits) that are written on the Z-Wave® DSK label on the side of the Device and on the Z-Wave® DSK label inserted in the packaging.
IMPORTANT: The PIN Code must not be lost.
SmartStart adding (inclusion)
SmartStart enabled products can be added into a Z-Wave® network by scanning the Z-Wave® QR Code present on the Device with a gateway providing SmartStart inclusion. No further action is required, and the SmartStart device will be added automatically once the battery device wakes up in the network vicinity.
With the gateway application scan the QR code on the Device label and add the Security 2 (S2) Device Specific Key (DSK) to the provisioning list in the gateway.
Wake up the device
Check if the blue LED is blinks once. If so, the Device is not added to a Z-Wave® network.
Adding will be initiated automatically within a few seconds after device wake’s up and the Device will be added to a Z-Wave® network automatically.
The blue LED will be blinking in Mode 2 during the adding process.
The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave® network.
Adding (inclusion) with the S button (*not available for Long Range inclusion)
Single press and check if the blue LED blinks once. If so, the Device is not added to a Z-Wave® network.
Enable add/remove mode on the gateway.
To enter the Setting mode, press the S button (>0,5s) on the Device until the LED turns solid blue.
Release and then press and hold (> 2s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the Learn mode.
The blue LED will be blinking in Mode 2 during the adding process.
Once the device has been successfully added into a Z-Wave® network, the LED will remain off. To confirm the inclusion of the device, press the S-button again; the green LED will blink once as a signal of successful inclusion.
Note! In Setting mode, the Device has a timeout of 10s before entering again into Normal mode.
Removing the Device from a Z-Wave® network (exclusion)
Note! The Device will be removed from your Z-Wave® network, but any custom configuration parameters will not be erased.
Removing (exclusion) with the S button
Single press and check if the green LED blinks once. If so, the Device is added to a Z-Wave® network.
Enable add/remove mode on the gateway.
To enter the Setting mode, press the S button (>0,5s) on the Device until the LED turns solid blue.
Release and then press and hold (> 2s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the Learn mode.
The blue LED will be blinking in Mode 2 during the removing process.
The blue LED will be blinking in Mode 1 if the Device is successfully removed from a Z-Wave® network.
Note! In Setting mode, the Device has a timeout of 10s before entering again into Normal mode.
Factory reset
Factory reset general
After Factory reset, all custom parameters and stored values (kWh, associations, routings, etc.) will return to their default state. HOME ID and NODE ID assigned to the Device will be deleted. Use this reset procedure only when the gateway is missing or otherwise inoperable.
Factory reset with the S button
Note! Factory reset with the S button is possible anytime.
To enter the Setting mode, press the S button (>0,5s) on the Device until the LED turns solid blue.
Press the S button until the LED turns solid red.
Press and hold (> 2s) S button on the Device until the red LED starts blinking in Mode 3. Releasing the S button will start the factory reset.
During factory reset, the LED will shortly turn solid green.
The blue LED will be blinking in Mode 1 if the Factory reset is successful.
Remote factory reset with parameter with a gateway
Factory reset can be done remotely with the settings in Parameter No. 120.
Z-Wave® Security and Device Specific Key (DSK)
The Device supports the latest Security 2 (S2) feature. S2 is handled by the strong AES 128 Encryption protocol, which means that the S2 makes Z-Wave® the most secure IoT (Internet of Things) security platform out there. To fully utilize the product and its Security 2 feature, a Security 2-enabled Z-Wave® gateway must be used.
Authenticated Control
Out-Of-Band DSK for adding (inclusion)
May be used by most implementations
The Device also supports Security 2 Authenticated, Unauthenticated, and Unsecure adding (inclusion).
Note! When adding the Device to a Z-Wave® network with a gateway supporting Security 2 (S2), the PIN Code of the Z-Wave® Device Specific Key (DSK) is required. You can find it on the label on the side of the Device and a copy is inserted in the packaging, which must not be lost. Do not remove the Z-Wave® DSK label from the Device. As a backup measure, use the label in the packaging.
The first five digits of the key are highlighted or underlined to help the user identify the PIN Code part of the DSK text. The DSK is additionally represented with a QR Code as shown on the image.
Z-Wave® DSK label and QR code (example)
A joining node requesting to join the S2 Access Control Class or the S2 Authenticated Class will obfuscate its Public Key by setting the bytes 1..2 to zeros (0x00) before transferring its key via RF.
The DSK may be used for out-of-band (OOB) authentication.
The including gateway may use a QR code scanning device to read the entire DSK of the joining device and match it with the obfuscated public key received via RF from the joining device.
Setting Parameters
Parameter No. 117 - Remote Device reboot
This parameter enable restarting or rebooting the Device without physical intervention. Use this parameter only for troubleshooting scope. After device reboot the parameter value will be set to default.
Values size: 1 Byte
Default value: 0
Values & descriptions:
0 - function inactive
1 - Remote device reboot
Parameter No. 119 - Power source selection
Parameter defines if devicve is battery supplied or by external power supply.
Values size: 1 Byte
Default value: 0
Values & descriptions:
0 - battery
1 - external
Parameter No. 120 - Factory Reset
Reset to factory default settings and removed from the Z-Wave network.
The parameter is Advanced and may be hidden under the Advanced tag.
Values size: 4 Byte
Default value: 0
Values & descriptions:
0 - No action
1 - Factory reset
After reset is performed, the parameter value is automatically set to 0.
Parameter No. 161 - Temperature threshold
The temperature value is reported if the measured difference is higher to defined threshold value.
Values size: 1 Byte
Default value: 5
Values & descriptions:
1 - 50 (1 stands for 0.1°C and 50 stands for 5.0°C)
Parameter No. 162 - Temperature offset
Set value by this parameter is added to or subtracted from the actual measured value to adjust the temperature report.
Values size: 2 Byte
Default value: 0
Values & descriptions:
Min. value: -500
Max. value: +500
NOTE: 1=1/10° [°C/°F]. The value is added to the currently measured value for the purpose of sensor calibration.
Parameter No. 163 - Humidity treshold
The humidity value is reported if the measured difference is higher to defined treshold value.
Values size: 1 Byte
Default value: 1
Values & descriptions:
1 - 50 (1 stands for 1% RH and 50 stands for 50% RH)
Parameter No. 164 - Humidity offset
Set value by this parameter is added to or subtracted from the actual measured value to adjust the humidity report.
Values size: 2 Byte
Default value: 0
Values & descriptions:
Min. value: -50
Max. value: +50
NOTE: 1=1% [RH]. The value is added to the currently measured value for the purpose of sensor calibration.
Parameter No. 201 - Serial Number 1
This parameter contains a part of device’s serial number.
The parameter is Read-Only and cannot be changed.
The parameter is Advanced and may be hidden under the Advanced tag.
Values size: 4 Byte
Default value: Device specific
Values & descriptions:
· 0x00000000 - 0x7FFFFFFF
Parameter No. 202 - Serial Number 2
This parameter contains a part of device’s serial number.
The parameter is Read-Only and cannot be changed.
The parameter is Advanced and may be hidden under the Advanced tag.
Values size: 4 Byte
Default value: Device specific
Values & descriptions:
· 0x00000000 - 0x7FFFFFFF
Parameter No. 203 - Serial Number 3
This parameter contains a part of device’s serial number.
The parameter is Read-Only and cannot be changed.
The parameter is Advanced and may be hidden under the Advanced tag.
Values size: 4 Byte
Default value: Device specific
Values & descriptions:
· 0x00000000 - 0x7FFFFFFF
Z-Wave® Command Classes
ASSOCIATION_V2 [S0, S2]*
ASSOCIATION_GRP_INFO_V3 [S0, S2]*
BATTERY_V3 [S0, S2]*
CONFIGURATION_V4 [S0, S2]*
DEVICE_RESET_LOCALLY_V1 [S0, S2]*
FIRMWARE_UPDATE_MD_V5 [S0, S2]*
INDICATOR_V3 [S0, S2]*
MANUFACTURER_SPECIFIC_V2 [S0, S2]*
MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*
POWERLEVEL_V1 [S0, S2]*
SECURITY_V1
SECURITY_2_V1
SENSOR_MULTILEVEL_V11 [S0, S2]*
SUPERVISION_V1
TRANSPORT_SERVICE_V2
VERSION_V3 [S0, S2]*
WAKE_UP_V2 [S0, S2]*
ZWAVEPLUS_INFO_V2
Battery Command Class
The Device use Battery Command Class to manage the reporting of the battery’s power level.
With the use of a Battery Get command we can get a report, in percentage, of the battery’s power level. These values are from 0x00 to 0x64 in hexadecimal or in decimal, from 0 to 100.
Low-Battery warning
When the battery level is close to 0, the device will send an unsolicited / automatic report to the controller with a value 0xFF representing a low-battery warning.
NOTE! Because it is impossible to know the chemistry and discharge characteristics of each battery, and because of such low voltages, Low-battery warnings can vary widely.
Wake up Command Class
This device goes to sleep mode to limit the power consumption of the battery. With the help of this command class the device lets the controller know when it is asleep and when did it Wake up. When the device is asleep it will not receive or process any commands sent to it.
The Device wakes up on it’s own to report to the gateway, that it still alive. The default interval is 43200 seconds or 12 hours meaning the Device will wake up by itself twice a day.
This interval can be set through the Wake Up Interval Set. The values that it will accept are between 0 and 86400 seconds (24 hours).
WARNING! Low values for the interval will cause to device to drain the battery very quickly.
When the Device wakes up, it sends a Wake up notification to the gateway, letting it know it is awake and ready to receive commands.
The Device will wake up when:
Pressing the S button
When the Device is powered on
By the set wake up interval
When the device wakes up, it reset the interval timer and send a Wake Up Notification to the gateway, letting it know that it is awake. At that moment any commands that have been queued for execution will be sent to the device. Afterwards, when all commands are received by the device, the gateway will notify the Device that it may go to sleep again with a Wake Up No More Information command.
WARNING! If by any chance the Device does not receive a Wake Up No More Information command, the device will stay awake for at least 10 seconds before it goes to sleep by itself.
Supporting Command Class Indicator
The Device supports the Command Class Indicator V3 (ID 0x50). When the Device receives an indicator set, the LED blinks according to the received indicator set.
Refer to LED Signalization chapter.
Z-Wave® Notifications Command Class
N/A
Z-Wave® Associations
Disclaimers and Warnings
READ BEFORE USE
This document contains important technical and safety information about the Device, its safe use and installation.
Z-Wave® Important disclaimer
Z-Wave® wireless communication may not always be 100% reliable. This Device should not be used in situations in which life and/or valuables are solely dependent on its functioning. If the Device is not recognized by your gateway or appears incorrectly, you may need to change the Device type manually and ensure that your gateway supports Z-Wave Plus® multi-channel devices.
Compatibility
Wave H&T |
functions - reports |
||
Gateway |
Sensor 1 |
Sensor 2 |
Notes |
Home Assistant |
|
|
|
Fibaro - HC 3 / Wave engine 3 |
|
|
|
Homey |
|
|
|
Homee Gen 7 |
|
|
|
Homee Gen 5 |
|
|
|
Smart Things |
|
|
|
Vera Ezlo |
TBD |
TBD |
|
Cozify |
TBD |
TBD |
|
Notes |
Sensor 1: Temperature |
||
Function |
Meaning / tested |
|---|---|
On/Off |
if device respond to the app UI On/Off command |
SW On/Off |
if device reports On/Off changes by SW input |
Dimming |
if device respond to app UI dimming command |
SW Dimming |
if device report dimming state change by SW input |
Watts |
if Watts are reported (unsolicited) |
kWh |
if kWh are reported (unsolicited) |
Up/Down |
if device respond to the app UI Up/Down command |
SW Up/Down |
if device reports Up/Down changes by SW input |
Slats |
if the slats respond to the app UI command |
SW Slats |
if the slats report the changes done by SW |
D control |
detached mode if device reports scene commands single press, double press,… |
D Binary |
detached mode if the device reports binary On/Off by SW input |
Sensor # |
Is the sensor report visualized in the gateway, type of sensor in the notes. |
Legend | ||||
Symbol |
State |
|||
|
Working / Possible |
|||
❌ |
Not Working / Not Possible |
|||
P |
Partially |
|||
N/T |
Not Tested |
|||
TBD |
To be done |
|||
Compliance
Shelly Wave H&T ANZ Certificate for Suitability.pdf
Disposal & Recycling
Do not dispose of the product in household waste. Recycle the product to prevent environmental and health damage and to promote resource conservation. Dispose of the product at an appropriate waste collection point at your own responsibility.
Resellers, from which the Device was purchased are required to accept Waste Electrical and Electronic Equipment (WEEE) free of charge for proper disposal.
Some electronic products may store personal data. The user is responsible for deleting this data before disposing of the Device. For deletion reset the Device to its factory settings.
Printed User Guide
Shelly_Wave_H&T_ANZ_B2513_V1-print.pdf
Web links
Troubleshooting
Gateway guides
You may find useful guides on gateways in the Z-Wave Z-Wave Gateways
Firmware
Latest firmware updates:
Stay Updated with the Firmware Releases for Shelly Wave Devices
all firmware updates:
GitHub - Shelly Wave FW OTA files
Integration
All shelly devices:
Discover Compatible Gateways for our Devices
Webpages
Product page
Manufacturer
Shelly Europe Ltd.
Address: Shelly Europe ltd, 51 Cherni Vrah Blvd., building 3, floor 2 and 3, Lozenetz Region, Sofia 1407, Republic of Bulgaria
Tel.: +359 2 988 7435
E-mail: zwave-shelly@shelly.cloud
Support: https://support.shelly.cloud/
Changes in the contact data are published by the Manufacturer at the official website: https://www.shelly.com
Legal Notice
This User Guide is subject to change and improvement without notice. Shelly Wave reserves all rights to revise and update all documentation without any obligation to notify any individual or entity.
